Monocrystalline Fused Alumina

Features:

  • 1. Low sodium, below 0.2%
  • 2. High hardness
  • 3. High toughness
  • 4. High bulk density and high wear resistance
  • 5. High-end abrasive material
  • 6. Small crystal, not easy to damage the workpiece
Send Email Chat Now TDS Download
Product Description parameter Advantage FAQ Related products Inquiry

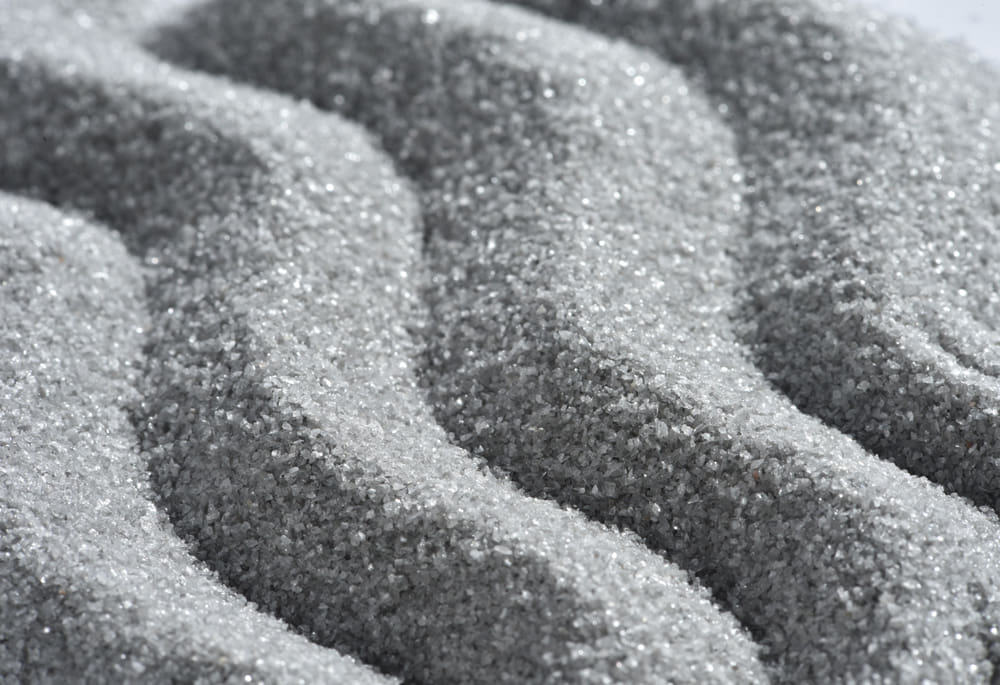

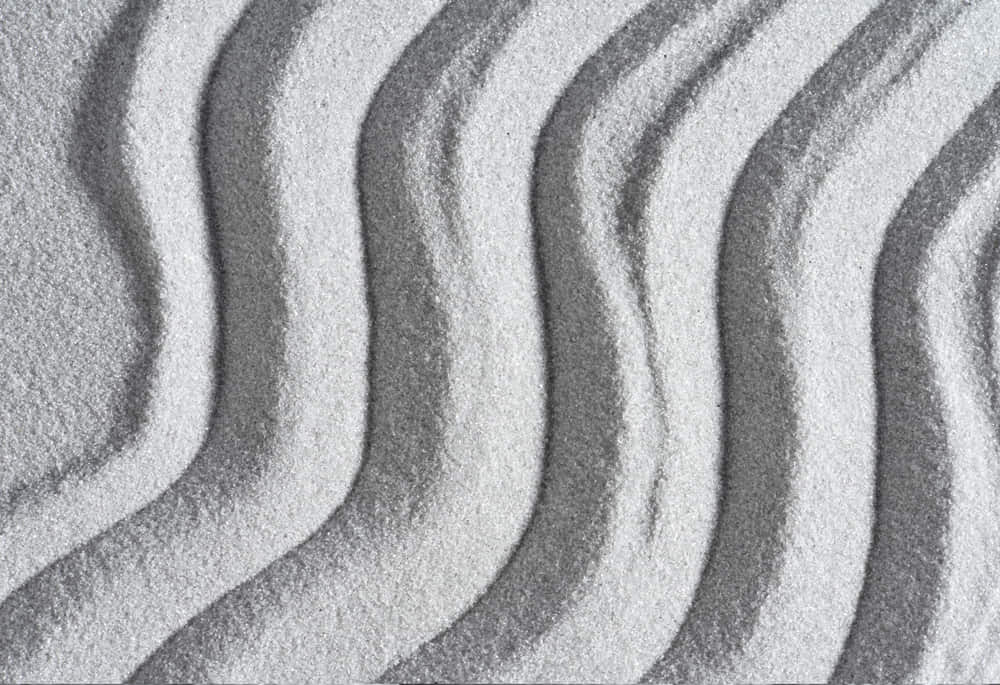

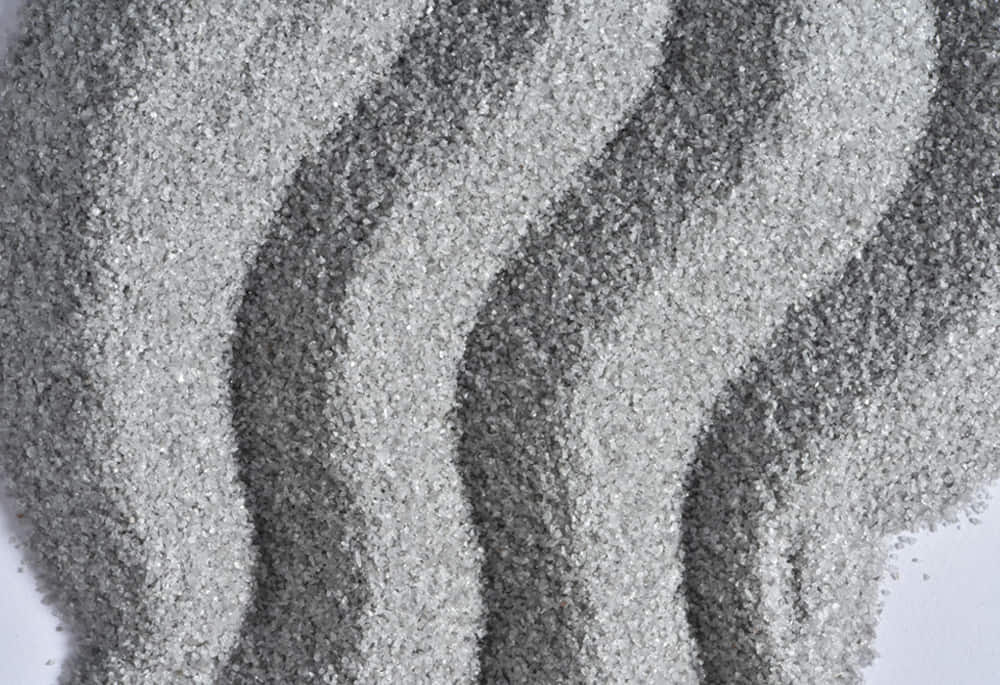

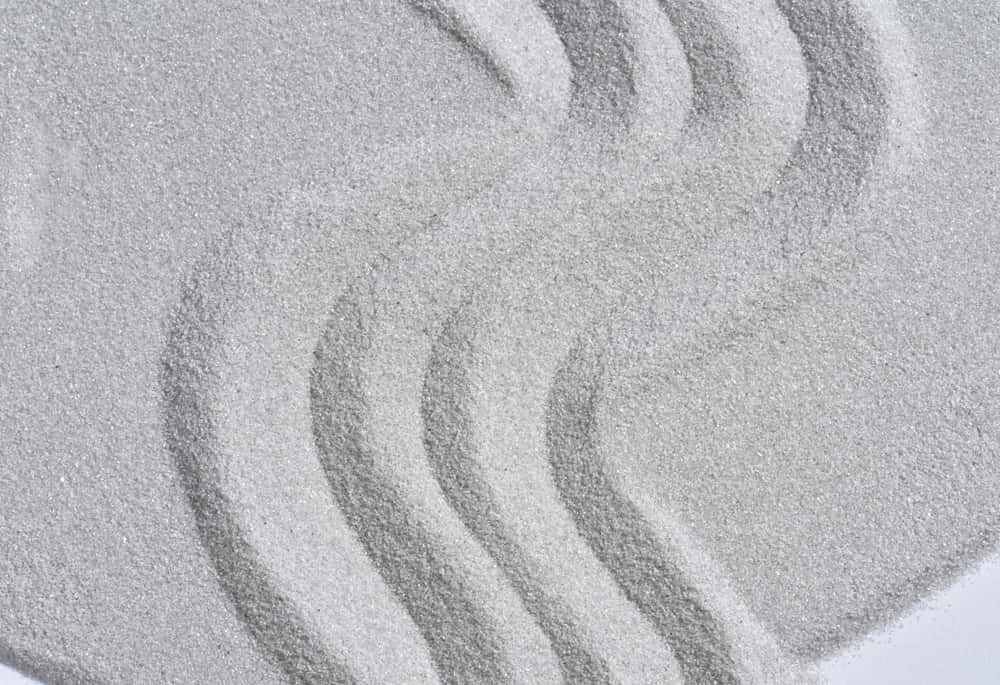

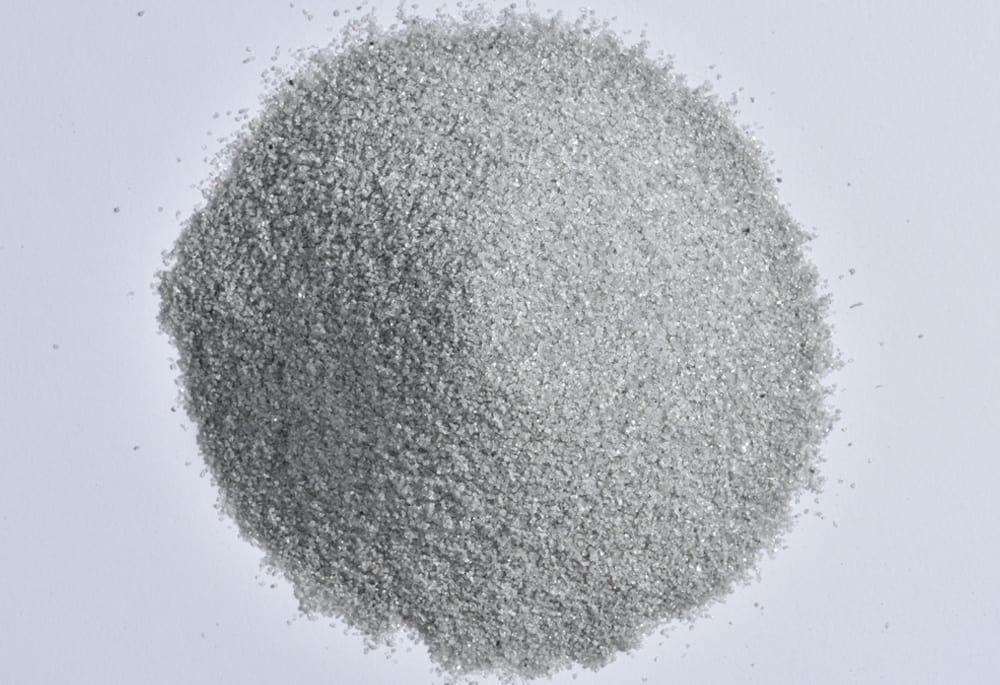

Monocrystalline fused alumina is a premium grinding material that undergoes a special high-temperature melting process. Its abrasive particles exhibit an off-white color.

Applications

1. It's mainly used for making advanced cutting and grinding tools.

2. It’s suitable for grinding high-hardness, high-toughness materials such as high-vanadium high-speed steel, austenitic stainless steel, and titanium alloys.

3. It is used for dry grinding and grinding work which is easy to deform and burn.

4. It is suitable for various abrasive tools such as resin, ceramics, coating, etc.

5. It can be used for high temperature bonding agent molding, and won’t fade after high temperature sintering.

Pefa F
  • F24, F30, F36, F40, F46, F54, F60, F80, F90, F100, F120, F150 Other spec are available upon request.

Parameter

Chemical Composition

Chemical Composition Al2O3 % ≥ Na2O % ≤ SiO2 % ≤ Fe2O3 % ≤
Single Crystal Corundum 99 0.2 0.5 0.1

Product Advantages

Melting Process

Tilting Furnace - Transfert - Cool Down - Barmac Crusher & Sorting - Sand Making - Warehouse

QC

For the monocrystalline fused alumina, the chemical composition of Al2O3, SiO2, Fe2O3,K2O,Na2O need to be tested, also very strick with the inspection of the bulk density.

FAQ

  • 1. What is the Na2O content of your monocrystalline fused alumina?

    The Na2O content is less than 0.2%.

  • 2. What is the melting temperature and melting time?

    We achieve a melting temperature of 2300℃ and dedicate 24 hours to the melting process, aiming for superior quality. To ensure consistent quality standards, our furnace operates continuously unless there are unavoidable circumstances.

  • 3. What is the type of melting furnace of your dense corundum? Tilting or fixed?

    All our melting furnaces are tilting with a diameter of 6.5 m.
